$27.57
Price is based on number of products purchased. Please refer to the table below for pricing.
| Quantity | Unit Price |
|---|---|
| 1 – 9 | $27.57 |
| 10 – 24 | $22.46 |
| 25 – 49 | $20.42 |
| 50 + | $18.38 |
Terminals: With a male “M5” screw stud terminal on one end and a female “M5” Insert terminal on the other, these capacitors are easily connected in series for voltage doubler applications.
This product is NON-RETURNABLE and NON-CANCELLABLE.
Please read NR/NC Terms & Conditions for more information.
Out of stock
|
|
|

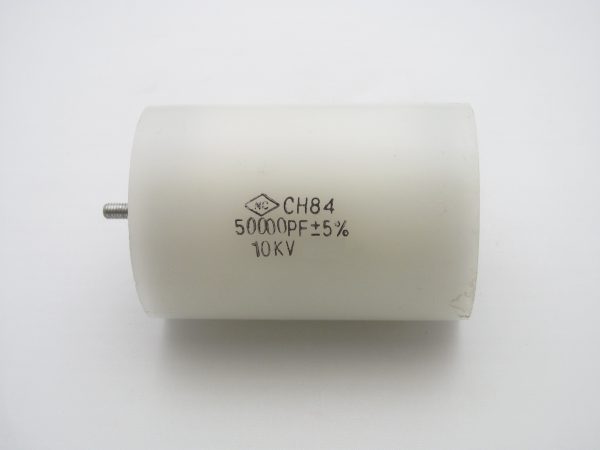

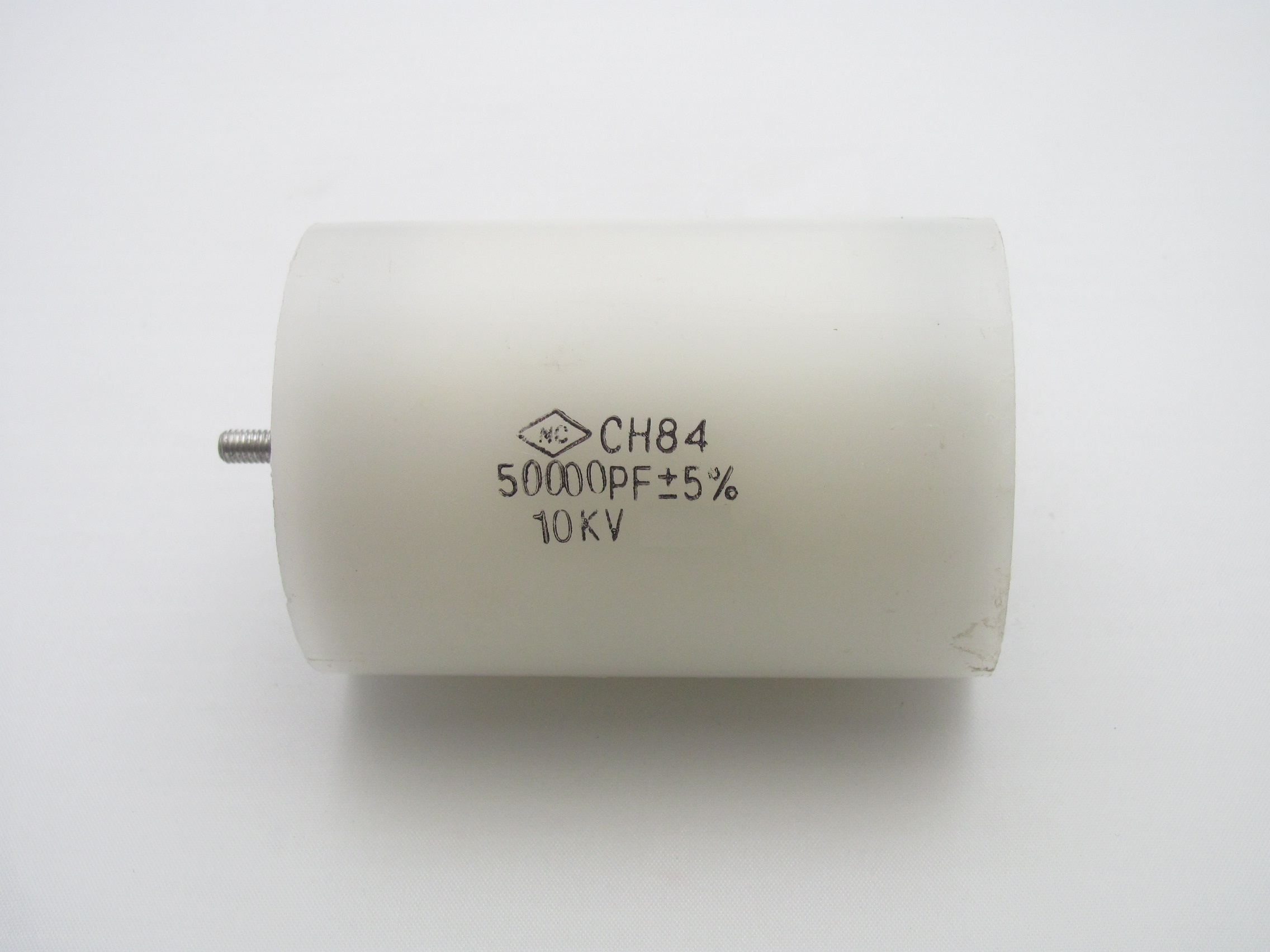

| Part Number: | CH84-503-10M |
|
|
|
| Capacitance: | 0.05 uF (mfd / microfarad) |
|
|
|
| Voltage: | 10,000 VDC |
|
|
|
| Typically used in: | Type CH84 Capacitors are designed for wide range of uses including Power Supply Filtering, Voltage Multipliers, Bypass, Coupling, and Suppression. They are designed to meet the requirements of Q/3201GDJU007-2002. |
|
|
|
| Part Number | uF | VAC | D (in) |
H (in) |
D (mm) |
H (mm) |
Data Sheet |
|
|---|---|---|---|---|---|---|---|---|
|
CH84-503-30M High Voltage Compound Dielectric Capacitor 0.05 uF 30 KVDC | 0.05 | 30,000 | 3.54 | 5.63 | 90 | 143 |
|
|
CH84-602-60M High Voltage Compound Dielectric Capacitor 0.006 uF 60 KVDC | 0.006 | 60,000 | 2.36 | 8.86 | 60 | 225 |
|
|
CH84-103-4M High Voltage Compound Dielectric Capacitor 0.01 uF 4 KVDC | 0.01 | 4,000 | 1.97 | 2.95 | 50 | 75 |
|
|
CH84-252-10M High Voltage Compound Dielectric Capacitor 0.0025 uF 10 KVDC | 0.0025 | 10,000 | 1.97 | 2.95 | 50 | 75 |
|
