Capacitor Brackets
We also offer different type of mounting brackets for our capacitors; Please select the type of capacitor below.
| STRAP BRACKETS |
WRAP-AROUND BRACKETS |
FOOTED BRACKETS |
| Steel brackets designed for mounting oval or round aluminum capacitors. Typically 0.75″ wide and more than 20 gauge thick, these brackets will have no problem holding the capacitors in place even under extreme vibration. These strap brackets comes in standard non-plated finish and galvanized finish is also available on certain products. Ideal for mounting capacitors parallel to a flat surface. |
Ideal for mounting capacitors in upright position. |
Ideal for mounting rectangular-shaped drawn metal can capacitors. |
 |
Image Coming Soon |
Image Coming Soon |
| STRAP BRACKETS FOR OVAL CAPACITOR CANS |
 |
Part Number |
Dimension A |
Dimension B |
Dimension C |
Dimension D |

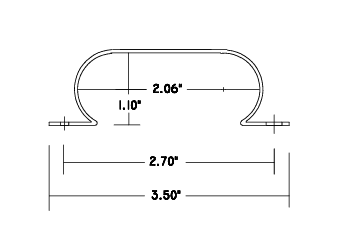

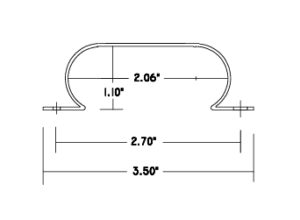

| 1C1611G |
2.06″ |
2.70″ |
3.50″ |
1.10″ |
| 1C1618 |
2.58″ |
3.06″ |
3.50″ |
1.47″ |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| STRAP BRACKETS FOR ROUND CAPACITOR CANS |
|
Part Number |
Dimension A |
Dimension B |
Dimension C |
Dimension D |
| DALC-1.77 |
1.77″ |
2.50″ |
3.50″ |
1.60″ |
| DALC-2.17 |
2.17″ |
3.00″ |
3.75″ |
1.90″ |
| DALC-2.47 |
4.00″ |
3.00″ |
4.45″ |
2.25″ |
|
|
|
|
|
|
|
|
|
|
