ADP Motor Run Capacitors

ADP (Metalized Polypropylene) motor run capacitors are compact, self-healing products that find greatest utilization as motor-run capacitors in fractional horsepower electric motors. However, the motor run capacitors may be used in a wide variety of 50/60 Hz. AC or DC applications.

The motor run capacitors are available in capacitances up to 30 microfarads and with voltage ratings of 250, 370, and 440 VAC. The metalized polypropylene film dielectric provides excellent electrical characteristics including stable capacitance over time and temperature and a very low Dissipation Factor (internal heating).

The motor run capacitors’ integral mounting ear makes it an excellent choice for difficult to mount applications and the choice of terminal configurations is another big plus. Terminal configuration includes single or double 0.187 or 0.250 spade terminals fast-on, insulated wire leads, or PC-mount pins. ADP motor run capacitors can be supplied with a “lay-down” type bracket which provides additional mounting options. Other options available include P2 protected segmented film (ADP series).

ADP motor run capacitors offer UL, cUL, VDE, TUV, and CE approvals available. All ADP motor run capacitors are also RoHS compliant.

Technical Specifications
Capacitance 0.12 ~ 30 uF (±5%)
Rated Voltage 250 ~ 440 VAC
Frequency 50/60 Hz
Dissipation Factor ≤ 0.002 (100 Hz)
Operating Temperature -25 ~ +85 °C
Dielectric Material Metalized Polypropylene
Case Material Flame Retardant Plastic (UL94 V-0)
Terminal Configurations
(t) TERMINAL STYLE IMAGE
A Single AMP.187 Fast-On
C Double AMP.187 Fast-On

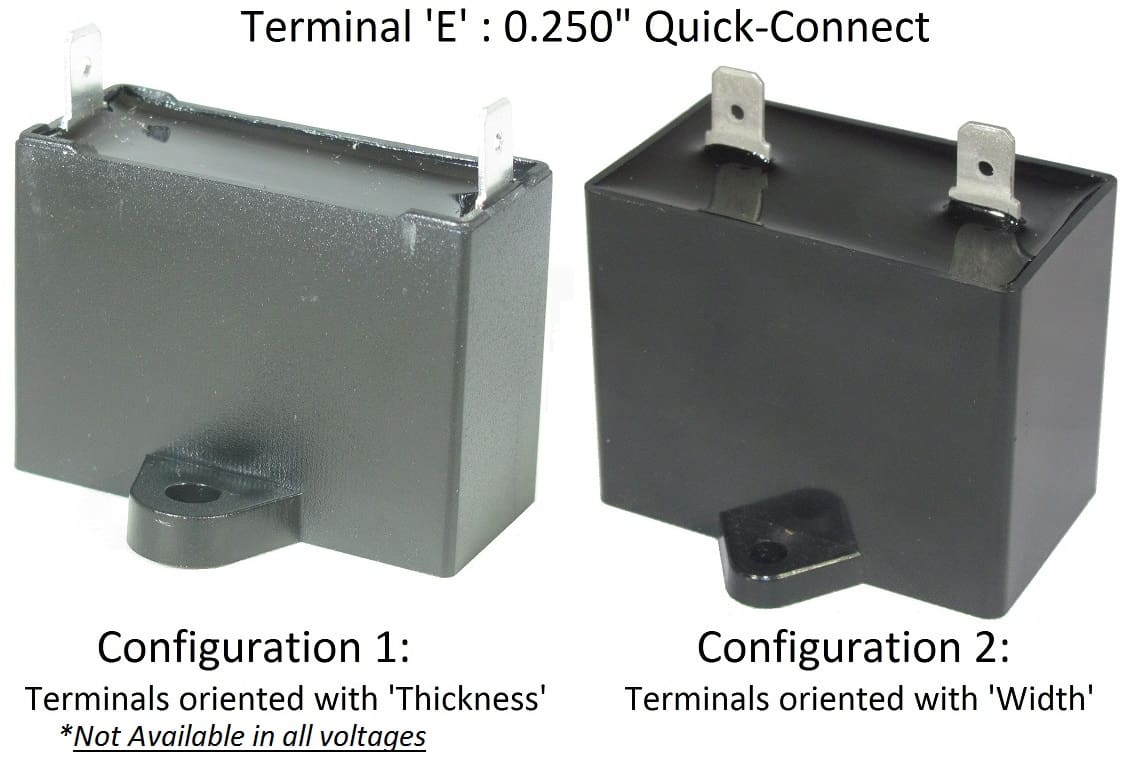

E Single AMP.250 Fast-On

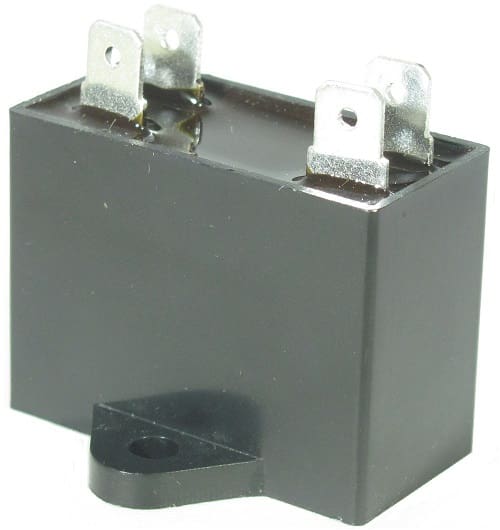

F Double AMP.250 Fast-On
M Insulated Wire Leads
S PC-mount Pins

Click HERE for complete list of Part Numbers, Voltages, and Capacitances available.

ADP MOTOR RUN CAPACITORS

Click Part Numbers below to purchase these capacitors.

  Part Number uF VAC W
(in)		 T
(in)		 H
(in)		 W
(mm)		 T
(mm)		 H
(mm)		 Data
Sheet
A yellow cylindrical 22WE154J 0.15 uF 400 VDC capacitor with two metal leads extending from each end is shown on a plain white background. 22WE154J 0.15 uF 400 VDC Capacitor 0.15 400 1.00 0.37 0.41 25 9 19
A black rectangular ADP180E1255J 12.5μF 180VAC capacitor with two metal prongs is standing upright on a light surface. ADP180E1255J 12.5 uF 180 VAC Capacitor 12.5 180 1.02 1.49 1.64 26 38 42
A black rectangular ADP210E1255J 12 uF 210 VAC capacitor with metal prongs and a label, made by HAN SUNG ELECTRIC, is placed on a gray surface with a striped background. ADP210E1255J 12 uF 210 VAC Capacitor 12 210 1.02 1.49 1.65 26 38 42
The ADP220M186JN is a black rectangular 18μF 220VAC motor capacitor (-25 to +85°C, 5%, 50-60Hz, OC4018A02) with two black wires extending from the top. ADP220M186JN 18 uF 220 VAC Capacitor 0C4018A02 18 220 2.05 1.07 1.45 52 27 37 Adobe PDF file icon
A black rectangular ADP220M306J 30μF 220VAC capacitor (0C4030CA01) for motors, rated -25~+85°C, 50~60Hz, with two attached black wires. ADP220M306J 30 uF 220 VAC Capacitor 0C4030CA01 30 220 2.28 1.18 1.73 58 30 44 Adobe PDF file icon
A rectangular black ADP250A105J 1µF 250VAC motor capacitor (-25~+85°C, 50~60Hz, UL) with two metal prongs on top is shown on a white background. ADP250A105J 1 uF 250 VAC Capacitor 1 250 1.50 0.51 0.85 38 13 22 Adobe PDF file icon
The ADP250A155J-M1 CBB61 capacitor, rectangular and black with metal prongs on top, is labeled 1.5µF ±10%, 250VAC, 50/60Hz, and features certification symbols. It is shown placed on a light surface. ADP250A155J-M1 1.5 uF 250 VAC Capacitor CBB61 1.5 250 1.46 0.71 1.08 37 18 27
A black rectangular ADP250A156J 15μF ±5% 250VAC capacitor (part 6100-9186), -25° to +85°C, 50-60Hz, with two wire leads, shown on a white background. ADP250A156J 15 uF 250 VAC Capacitor 6100-9186 15 250 2.00 1.18 1.56 51 30 40 Adobe PDF file icon
A black rectangular ADP250A156J-M1 15μF 250VAC Capacitor CBB61, labeled 50/60Hz, ±10%, -40°C~+85°C, with two metal prongs and a mounting tab on top, is shown on a light surface. ADP250A156J-M1 15 uF 250 VAC Capacitor CBB61 15 250 1.99 0.98 1.41 51 25 36
A black ADP250A156JL-M1 15μF ±5% 250VAC CBB61 run capacitor with metal terminals and a mounting bracket, labeled 25–85°C and 50/60Hz (6100-9196), is shown against a plain light background. ADP250A156JL-M1 15 uF MFD 250 VAC CBB61 Run Capacitor 6100-9196 15 250 2.00 1.18 1.53 51 30 39 Adobe PDF file icon
