$64.56
Price is based on number of products purchased. Please refer to the table below for pricing.
| Quantity | Unit Price |
|---|---|
| 1 – 9 | $64.56 |
| 10 + | Contact us for Quote |
Terminals: With a male “M5” screw stud terminal on one end and a female “M5” Insert terminal on the other, these capacitors are easily connected in series for voltage doubler applications.
This product is NON-RETURNABLE and NON-CANCELLABLE.
Please read NR/NC Terms & Conditions for more information.
Out of stock
|
|
|

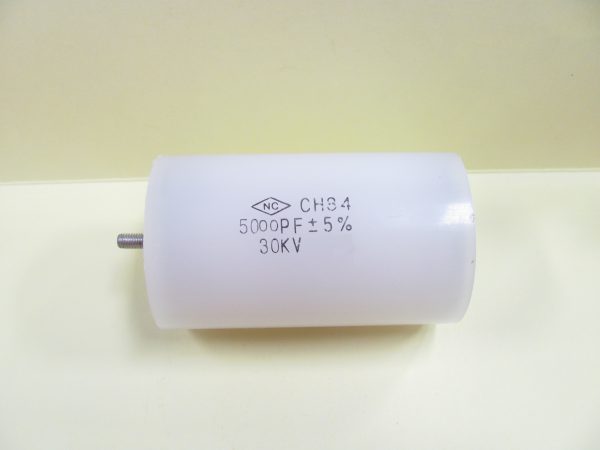

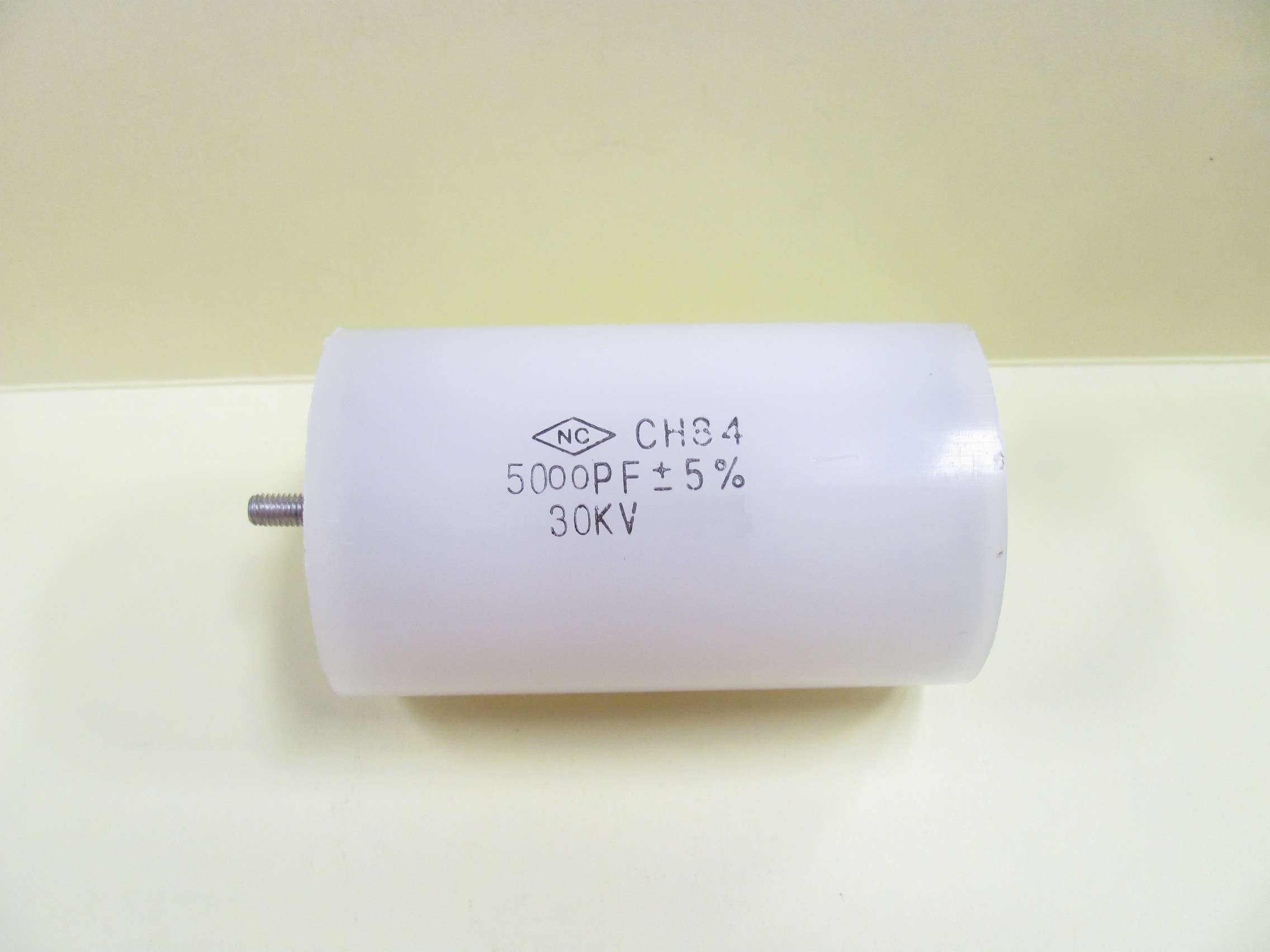

| Part Number: | CH84-502-30M |
|
|
|
| Capacitance: | 0.005 uF (mfd / microfarad) |
|
|
|
| Voltage: | 30,000 VDC |
|
|
|
| Typically used in: | Type CH84 Capacitors are designed for wide range of uses including Power Supply Filtering, Voltage Multipliers, Bypass, Coupling, and Suppression. They are designed to meet the requirements of Q/3201GDJU007-2002. |
|
|
|
| Part Number | uF | VAC | D (in) |
H (in) |
D (mm) |
H (mm) |
Data Sheet |
|
|---|---|---|---|---|---|---|---|---|
|
CH84-503-20M High Voltage Compound Dielectric Capacitor 0.05 uF 20 KVDC | 0.05 | 20,000 | 2.56 | 5.51 | 65 | 140 |
|
|
CH84-503-10M High Voltage Compound Dielectric Capacitor 0.05 uF 10 KVDC | 0.05 | 10,000 | 2.36 | 3.39 | 60 | 86 |
|
|
CH84-253-10M High Voltage Compound Dielectric Capacitor 0.025 uF 10 KVDC | 0.025 | 10,000 | 1.97 | 2.95 | 50 | 75 |
|
|
CH84-102-10M High Voltage Compound Dielectric Capacitor 0.001 uF 10 KVDC | 0.001 | 10,000 | 1.97 | 2.95 | 50 | 75 |
|
