$152.34

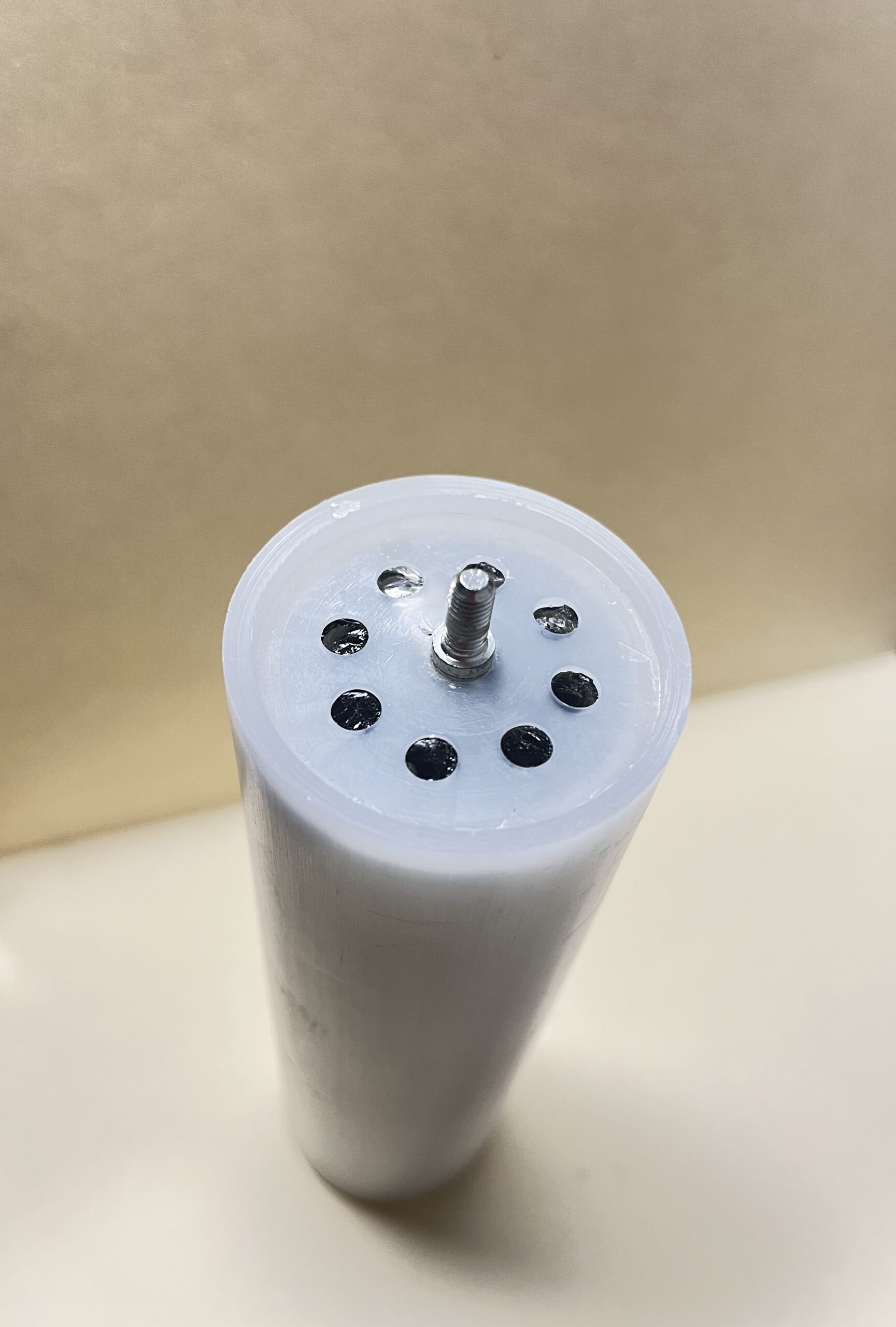

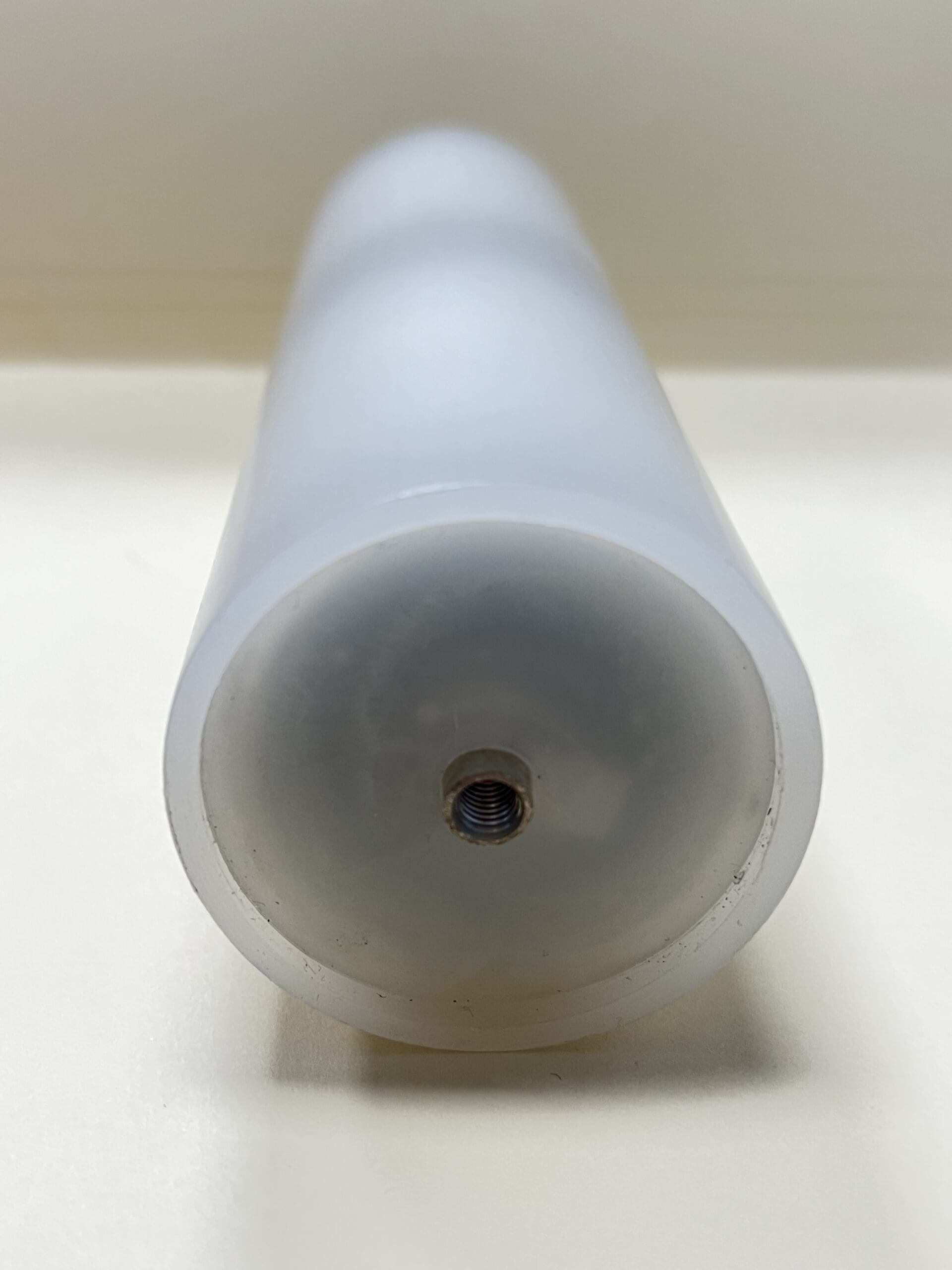

Terminals: With a male “M5” screw stud terminal on one end and a female “M5” Insert terminal on the other, these capacitors are easily connected in series for voltage doubler applications.
This product is NON-RETURNABLE and NON-CANCELLABLE.
Please read NR/NC Terms & Conditions for more information.
| $ 152.34 each |
1 in stock
|
|
|

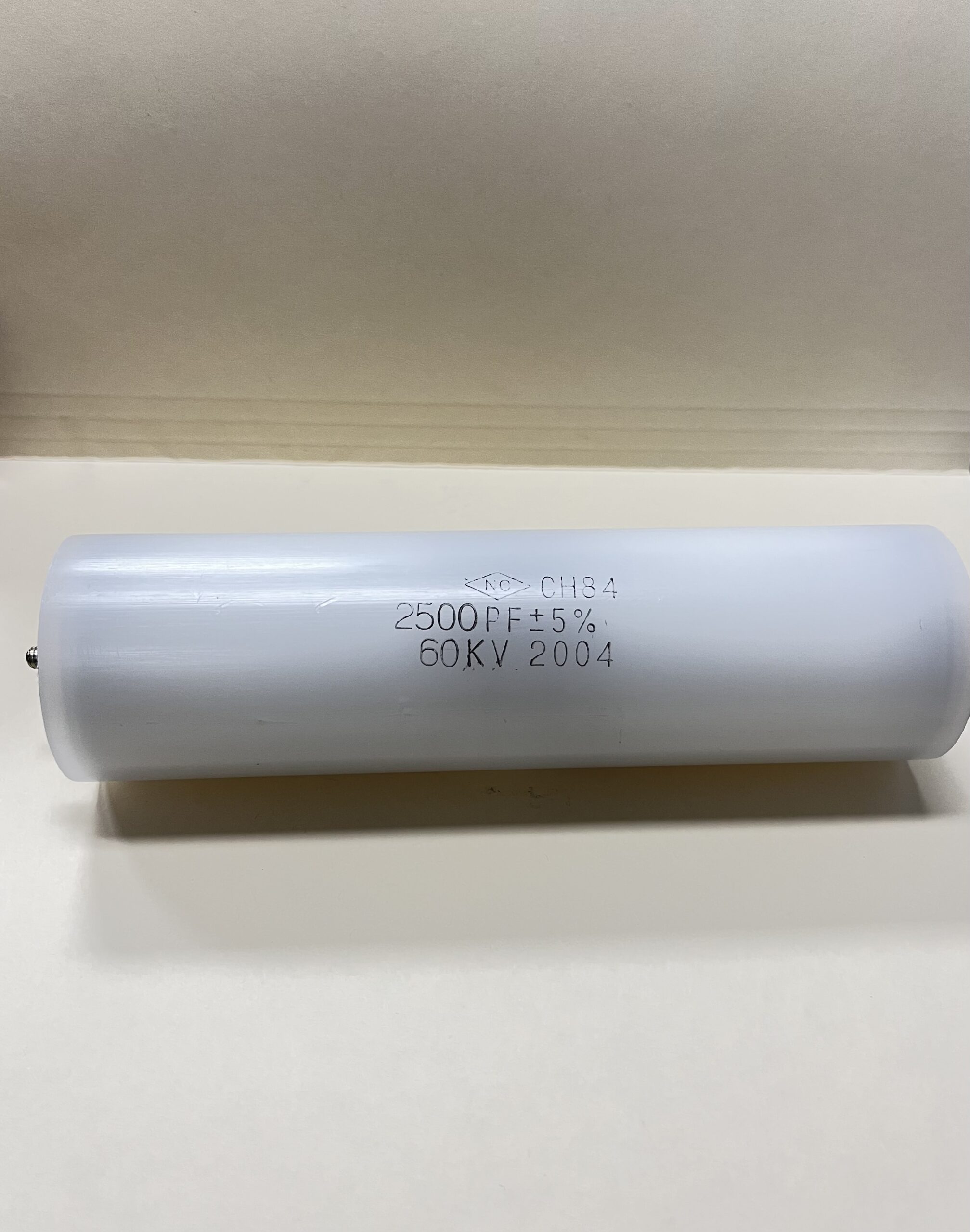

| Part Number: | CH84-252-60M |
| Capacitance: | 0.0025 uF (mfd / microfarad) |
|
|
|
| Voltage: | 60,000 VDC |
|
|
|
| Typically used in: | Type CH84 Capacitors are designed for wide range of uses including Power Supply Filtering, Voltage Multipliers, Bypass, Coupling, and Suppression. They are designed to meet the requirements of Q/3201GDJU007-2002. |
|
|
|
| Part Number | uF | VAC | D (in) |
H (in) |
D (mm) |
H (mm) |
Data Sheet |
|
|---|---|---|---|---|---|---|---|---|
|
CH84-252-10M High Voltage Compound Dielectric Capacitor 0.0025 uF 10 KVDC | 0.0025 | 10,000 | 1.97 | 2.95 | 50 | 75 |
|
|
CH84-152-40M High Voltage Compound Dielectric Capacitor 0.0015 uF 40 KVD Capacitor | 0.0015 | 40,000 | 1.97 | 2.95 | 50 | 75 |
|
|
CH84-503-20M High Voltage Compound Dielectric Capacitor 0.05 uF 20 KVDC | 0.05 | 20,000 | 2.56 | 5.51 | 65 | 140 |
|
|
CH84-602-60M High Voltage Compound Dielectric Capacitor 0.006 uF 60 KVDC | 0.006 | 60,000 | 2.36 | 8.86 | 60 | 225 |
|
