CBB60B Motor Run Capacitors

CBB60B motor run capacitors utilize low-loss metalized polypropylene film for dielectric. The CBB60B motor run capacitors are encapsulated with resin and housed in a self-extinguishing plastic case which allows for superior reliability and a high mechanical shock and vibration strength. The CBB60B series of motor run capacitors is ideal for start and run applications in single-phase asynchronous motors and general A.C. applications at industrial frequencies. The motor run capacitor is small in bulk, has long life-span and good self-healing characteristic. The motor run capacitor is widely used as the start up and running capacitor that is special for micro water pump, cleaning machine, washing machine, and single-phase water pump motor.

CBB60B motor run capacitors have optional terminal configuration of spade quick-connect terminals or insulated wire leads. Optional M8-stud and hardware are also available.

CBB60B motor run capacitors have UL and cUL approvals available. All CBB60B motor run capacitors are also RoHS compliant.

Technical Specifications
Capacitance 1 ~ 100 uF (±5%)
Rated Voltage 250 ~ 500 VAC
Frequency 50/60 Hz
Dissipation Factor ≤ 0.0015 (25 °C, 60Hz)
Operating Temperature -25 ~ +85 °C
Dielectric Material Metalized Polypropylene
Case Material Flame Retardant Plastic (UL94 V-0)
Terminal Configurations
(t) TERMINAL STYLE IMAGE

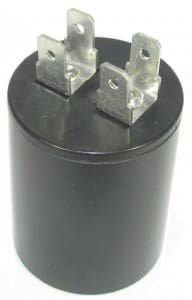

F Double AMP.250 Fast-On
N/M Insulated Wire Leads

Click HERE for complete list of Part Numbers, Voltages, and Capacitances available.

CBB60B MOTOR RUN CAPACITORS

Click Part Numbers below to purchase these capacitors.

Showing 1–10 of 22 results

  Part Number uF VAC D
(in)
H
(in)
D
(mm)
H
(mm)
Data
Sheet
CBB60B-250F206 20 uF 250 VAC Capacitor 20 250 1.39 2.68 35 68 Adobe PDF file icon
CBB60B-250F406-M1 40 uF 250 VAC Capacitor 40 250 1.39 3.06 35 78 Adobe PDF file icon
CBB60B-250M805 8 uF 250 VAC Capacitor 8 250 1.18 2.28 30 58 Adobe PDF file icon
CBB60B-250N106 10 uF 250 VAC Capacitor 10 250 1.18 1.61 30 41 Adobe PDF file icon
CBB60B-250N205 2 uF 250 VAC Capacitor 2 250 1.02 1.60 26 41 Adobe PDF file icon
CBB60B-250N605 6 uF 250 VAC Capacitor 6 250 1.02 2.05 26 52 Adobe PDF file icon
CBB60B-370F106-M1 10 uF 270 VAC Capacitor 10 370 1.18 2.81 30 71 Adobe PDF file icon
CBB60B-370F156 15 uF 370 VAC Capacitor 15 370 1.81 3.38 46 86 Adobe PDF file icon
CBB60B-370F505 5 uF 370 VAC Capacitor 5 370 1.38 1.77 35 45 Adobe PDF file icon
CBB60B-370F706 70 uF 370 VAC Capacitor 652623 70 370 1.97 4.27 50 108 Adobe PDF file icon
