Oval Wrap-Around Footed Brackets
Wrap-around brackets are typically manufactured from cold-rolled steel. Different types of finish are available such as zinc or galvanized finish. Wrap-around brackets have 20-22 GA thickness and included with screw and nut hardware to tighten the bracket into the capacitor.
Wrap-around brackets are ideal for mounting capacitors in upright position.
OVAL WRAP-AROUND FOOTED BRACKETS
Showing all 3 results

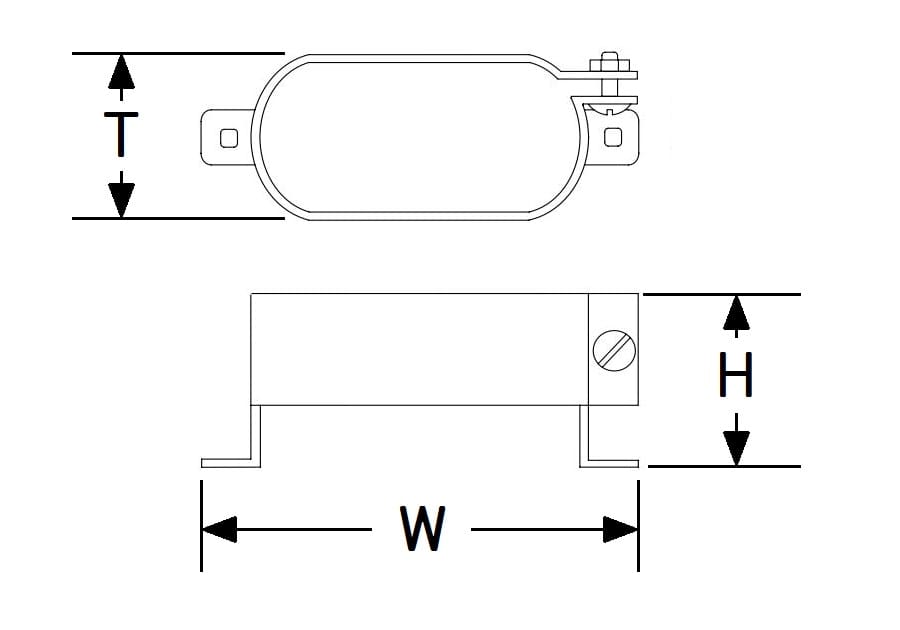

| Part Number | uF | VAC | W (in) |
T (in) |
H (in) |
W (mm) |
T (mm) |
H (mm) |
Data Sheet |
|
|---|---|---|---|---|---|---|---|---|---|---|
|
DAOB-125 Capacitor Bracket | 3.13 | 1.31 | 1.13 | 80 | 33 | 29 | |||
|
DAOB-150 Capacitor Bracket | 3.68 | 1.56 | 1.13 | 93 | 40 | 29 | |||
|
DAOB-175 Capacitor Bracket | 3.88 | 1.80 | 1.13 | 99 | 46 | 29 |
