Motor Start Capacitor End Caps

These plastic end caps are used to cover the top of motor start capacitors that are usually housed in phenolic case. These parts are usually used together with a motor start capacitor bracket. These end caps are designed with a wire hole away from the bracket.

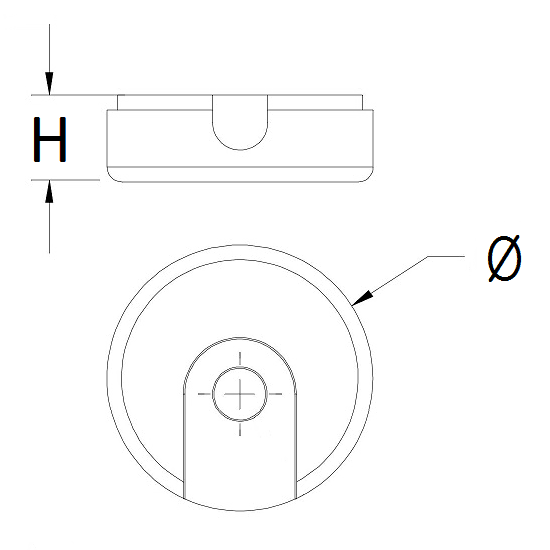

MOTOR START CAPACITOR END CAPS

  Part Number uF VAC D
(in)		 H
(in)		 D
(mm)		 H
(mm)		 Data
Sheet
A black, round plastic CD60C-1.81 Capacitor Cap/Cover with a central raised section and a bottom wire hole, featuring a notch on one side, shown on a white background. CD60C-1.44A Capacitor Cap/Cover Bottom Wire Hole 1.44 0.56 37 14
A black, round plastic CD60C-1.81 Capacitor Cap/Cover with a central raised section and a bottom wire hole, featuring a notch on one side, shown on a white background. CD60C-1.81 Capacitor Cap/Cover Bottom Wire Hole 1.82 0.71 46 18
A black, round plastic CD60C-1.81 Capacitor Cap/Cover with a central raised section and a bottom wire hole, featuring a notch on one side, shown on a white background. CD60C-2.06 Capacitor Cap/Cover 2.06 0.57 52 14
A black, round plastic CD60C-1.81 Capacitor Cap/Cover with a central raised section and a bottom wire hole, featuring a notch on one side, shown on a white background. CD60C-2.56 Capacitor Cap/Cover 2.56 0.63 65 16
